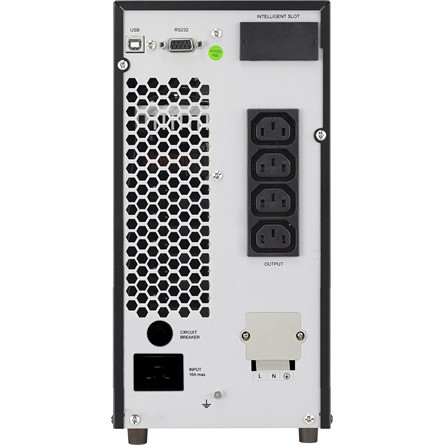

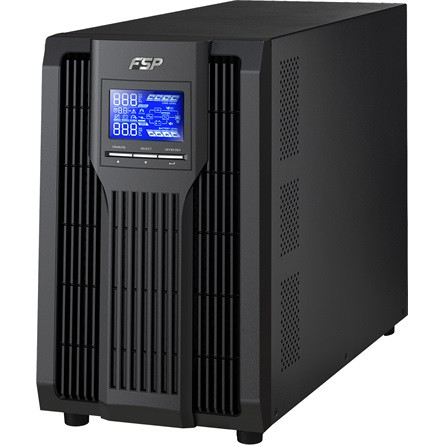

FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller. Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
Features:
- True double-conversion
- Microprocessor control optimizes reliability
- Input power factor correction
- Output power factor 0.9
- Wide input voltage (120 V – 300 V)
- Converter mode available
- ECO mode for energy saving
- Generator compatible
- Charger capacity expansion to 6A for long-run models
- Smart SNMP works well with either USB or RS-232 together
- Comprehensive display allows easy monitoring and access of UPS status
Specifications:
| Model |
Champ TW 1K(L) |
Champ TW 2K(L) |
Champ TW 3K(L) |
| Capacity |
1000 VA / 900W |
2000 VA / 1800W |
3000 VA / 2700W |
| Input Voltage Range |
120-300 VAC ±5% |
| Input Frequency |
40Hz ~ 70Hz |
| Power Factor |
≥ 0.99 @ Nominal Voltage (100% load) |
| Output Voltage |
± 1% (Batt. Mode) |
| Output Frequency Range |
47.5 Hz ~ 52.5 Hz or 57Hz ~ 63 Hz (Synchronized Range)
50 Hz ±0.25 Hz or 60 Hz ±0.3 Hz (Batt. Mode) |
| Current Crest Ratio |
3:1 |
| Harmonic Distortion |
≤ 3 % THD (Linear Load)
≤ 6 % THD (Non-linear Load) |
| Output Transfer Time (Typical) |
Zero (AC to DC)
4ms (Inverter to Bypass) |
| Output Waveform (Batt. Mode) |
Pure Sinewave |
| Battery Type & Number |
12V / 9Ah x 2 |
12V / 9Ah x 4 |
12V / 9Ah x 6 |
| Backup Time (One PC load@120W) |
N/A |
| Typical Recharge Time (up to 90% capacity) |
4 hours |
| Indicators / AC Mode |
 |
| Indicators / Battery Mode |
|
| Indicators / Battery level |
|
| Indicators / Load level |
|
| Indicators / Bypass mode |
|
| Indicators / Fault |
|
| Alarm / Battery Mode |
Sounding every 4 seconds |
| Alarm / Low Battery |
Sounding every second (Batt. Mode) |
| Alarm / Overload |
Sounding twice per second |
| Alarm / Fault |
Continuously sounding |
| Physical Dimension (mm) |
282 x 145 x 220 |
397 x 145 x 220 |
421 x 190 x 318 |
Physical Net Weight (kg)
Standard Model |
9.8 |
17 |
27.6 |
Physical Net Weight (kg)
Long-run Model |
4.1 |
6.8 |
7.4 |
| Operating Environment / Humidity |
20-90 % RH @ 0- 40°C (non-condensing) |
| Operating Environment / Noise Level |
Less than 50dB @ 1 Meter |
| Management / Optional USB / RS-232 Port |
Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7/8, Linux, and MAC |
| Optional SNMP |
Power management from SNMP manager and web browser |
